5" Non Glasses 3D ViewFinder [Discontinue]

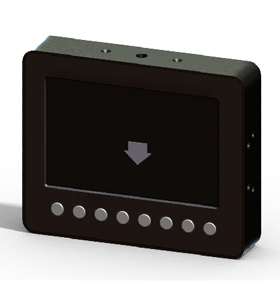

5" Non Glasses 3D ViewFinder
Prev
- Specifications
- Model Name
- VF-51A
- Screen Size
- 5inch[71.4(H) * 120.4(V) * 2.5(T) mm]
- Stereoscopic Type
- Circylar Non Glasses
- Aspect Ratio
- 5Inch 16:9.6
- Panel Type
- TN TFT color LCD
- Stereo Format
- Sidefield, Frame Sequential, Top and Bottom
- Mirror Processing
- Horizontal, Vertical Hardware based real time
- Brightness
- 260cd
- Resolution
- 2D : 800 * 480
3D : 400 * 480 (LEFT), 400 * 480 (RIGHT) - Display Color
- 16.7m(8bit)
- Pixel Pitch
- 0.135 * 0.135 mm
- Signal Support
- 720p, 1080i, 1080/30p
- OSD Features
- 3D Mode : (Grid move and distance control, Reverse)
2D Mode : LR(Sidefield), FR(Frame Sequential), UD(Top and Bottom) - Input(Left/Right)
- HDMI *2 Input(Left/Right)
- Size
- 143 * 114 * 28 mm(W*D*H)/ including stand add 20mm
- Weight
- 680g
- Material(exterior)/Color
- Aluminum / Black (Colors are subject to change without notice.)
- Power
- DC 12V 3A(MAX) / 2P DIN
- Warranty
- 1 Year
