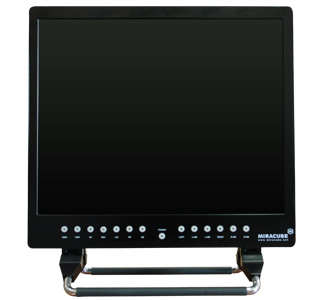

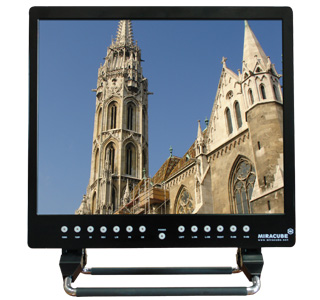

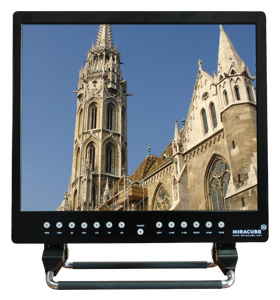

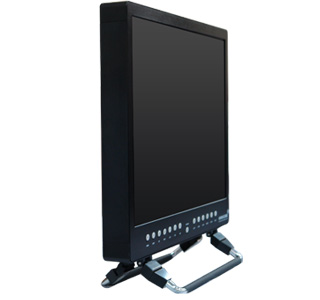

3D VIEW FINDER: VF-171P [Inquire]

3D Viewfinder

3D Stereoscopic Viewfinder

Key Features: · Portable with a carrying handle on top
· Real time monitoring
· Light weight
· Excellent Durability
· Adjustable flaps to block out the sun
· Professional Grade 3D Stereoscopic Display
· HD-SDI In & Out Ports
· Professional Grade Synchronizer for combining 2 feeds into one 3D movie file

Model Name: VF-171P
Screen Size: 17 inch [337.92(H) X 270.336(V) mm]
Stereoscopic Type: Circular Glasses
Aspect Ratio: 5:4 (DISPLAY 16:9 )
Stereo Type: TN TFT color LCD
3D Format: Sidefield, Frame Sequential, Top and Bottom
Mirror Processing: Horizontal, Vertical Hardware based real time
Brightness: 220 cd/m2
Resolution: 2D : 1280 X 720
3D : 1280 X 360 (Left Image - Odd Number Field)
1280 X 360 (Right Image - Even Number Field)
Display Color: 16.2M
Pixel Pitch: 0.264 mm
Signal Support: 1080 ( 23.98P, 24P, 29.97P, 25P, 30p, 59.94i, 50i, 60i )
720 ( 59.94P, 50P )
OSD Features: 1080i,720P (Auto detect LED)
3D Mode : (Grid move and distance control, 4 corner zoom, center zoom in 3D, Reverse)
2D Mode : LR(Sidefield), FR(Frame Sequential), UD(Top and Bottom) Power (ON/OFF)
Left, L(H-M) , L(V-M) , Right, R(H-M) , R(V-M)

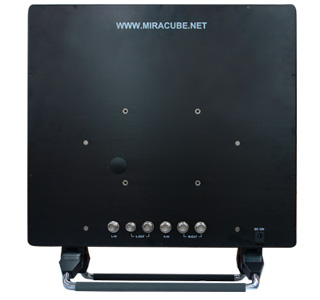

Input(Left/Right): HD-SDI * 2 (Left Camera , Right Camera)
Output(Stereo): HD-SDI * 2 (Left Camera Loop), HD-SDI * 2 (Right Camera Loop through)
Connector: BNC female
Size: 373 * 339.5(419) * 40 mm(W*D*H)/ including stand add 20mm
Weight: 4.6 kg (includes mounting, Net Weight.)
Material(Exterior)/Color: Aluminum/ Black (Colors are subject to change without notice.)
Power: DC 12V 3A (MAX) / 2P DIN
Accessories: Power Cable, Adaptor, 3D Glasses, manual, ARM,Durable Travel Case(Option)
Warranty: 1 Year
참고사항: 본 제품은 주문자 생산방식으로 별도 문의 바랍니다.
