3D RIG : CMT2000 [Discontinue]

Features
Gallery

3d rig

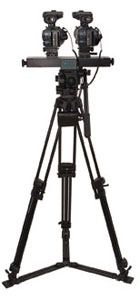

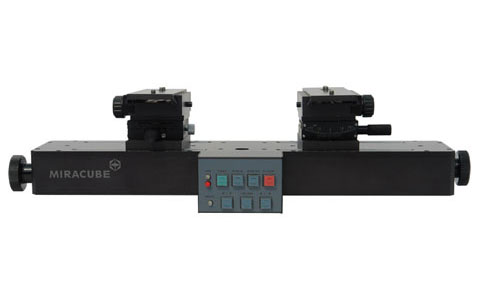

Stereoscopic 3D Rig

Key Features: - Convergence and Disparity Control
- Parallel/Alternate (Parallel Movement)
Two simultaneous power-adjustable camera disparity range, 82mm ~ 352mm

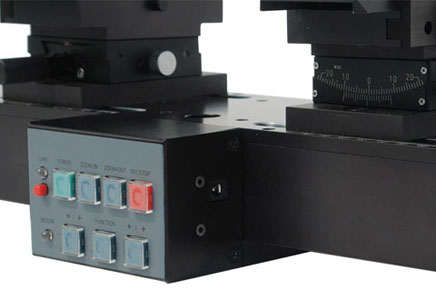

- LANC Controller for controlling two cameras
(Simultaneous Camera Control LANC REC./STOP, ZOOM in/out, POWER )
- Fine adjustment of convergence with manual controlled left and right movement knob
- Horizontal and optical axis micro control

Specifications

Model Name: CMT-2000
Size: 503 x 168 x 124mm
Camera Interval: Camera Disparity Range: 84 ~ 352 mm
Power: DC 12V 9,600mA
Tilt/Rotary Angle: Gonio Stage(tilt range) ±10°
Right Left Angle 30°
Weight: 5.8kg
Material/Surface Treatment: Aluminum /Anodizing
Color: Black
Accessories: Power Adaptor-1ea, Power Cable-1ea,
3/8 inch bush Adaptor 2ea. 1/4 inch screw 2ea, Quick Shoe 2ea.
Durable Travel Case(Option)
Option: LANC Cable, Wired External LANC CONTROLLER
Camera Support: [Lanc Control Support]
- Sony DCR-HC9
[Normal Camera]
- 5kg within HDV or HD Camera, RED, EX3
Warranty: 1 Year
